Description
Anthracite Filter Media is a hard, low-density granular filtration media used extensively in water-treatment filters. In multimedia filtration systems, anthracite is commonly used as the upper filtration layer above denser media such as silica sand and garnet.
Its relatively low bulk density allows larger anthracite particles to remain above the finer, denser media after backwashing, helping maintain a graded filter bed. This configuration supports solids loading through greater bed depth and can improve the effective use of the filtration bed when correctly designed.
Key Benefits
- Low-density granular filtration media
- Well suited to the upper layer of multimedia filters
- Supports graded filtration when combined with silica sand and other denser media
- Hard and durable media for repeated filtration and backwash cycles
- Available in multiple particle-size grades
- Suitable for new filter installations and media replacement
- Applicable to municipal, industrial and pretreatment filtration systems
- Available for project quantities and vessel-loading requirements
Specifications
Carbon Content 90 – 94 %
| Parameter | Typical Specification |
| Product | Anthracite Filter Media |
| Media Type | Granular Anthracite Filtration Media |

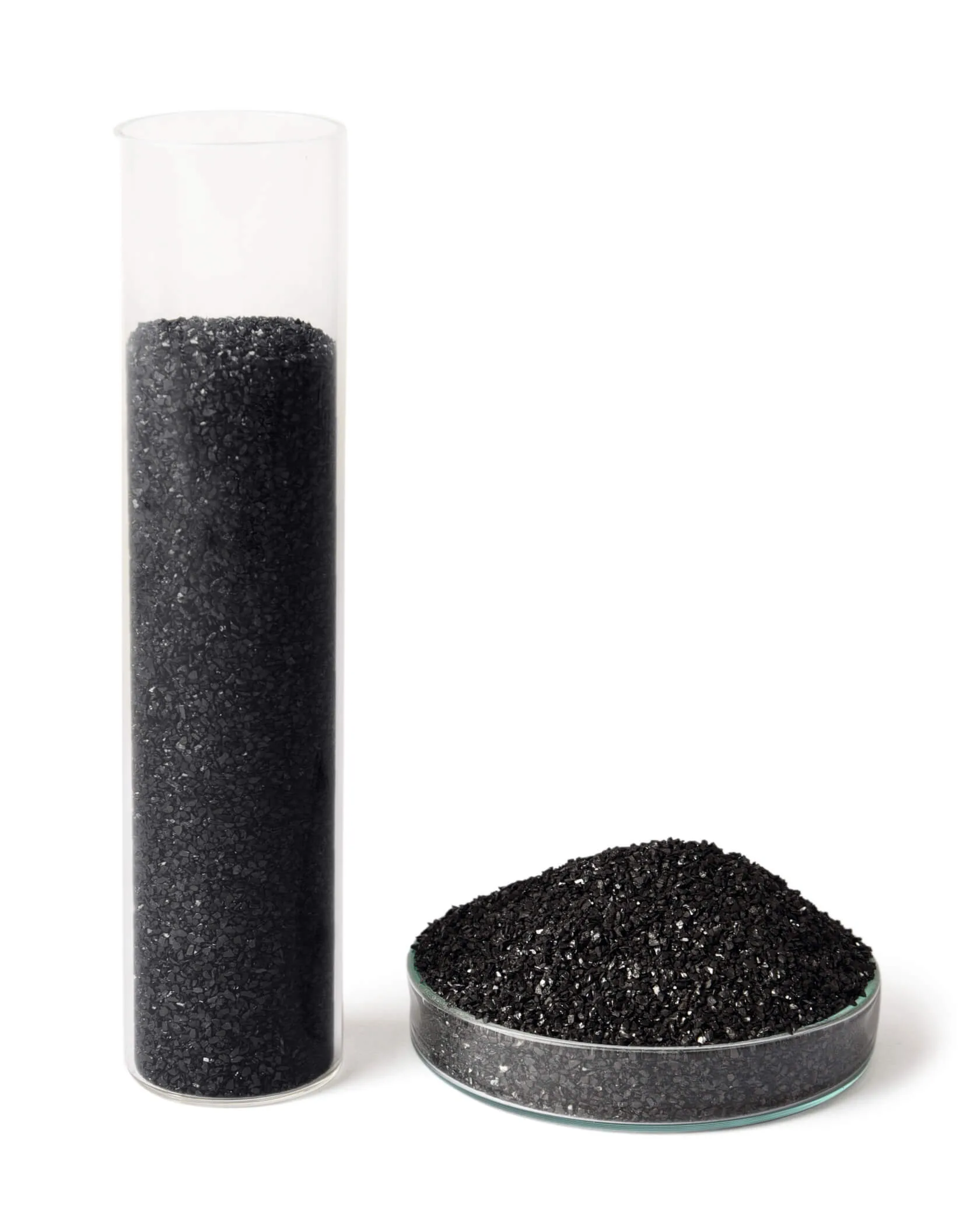

| Appearance | Black Granular Media |
| Available Particle Sizes | 0.8–1.6 mm; 1–2 mm; 1.4–2.9 mm |
| Typical Bulk Density | Approx. 720–850 kg/m³ |
| Typical Porosity | Approx. 0.45–0.55 |
| Hardgrove Grindability Index (HGI) | Approx. 39–45 |
| Applicable Standard | EN 12909 |
| Primary Function | Multimedia / Depth Filtration |

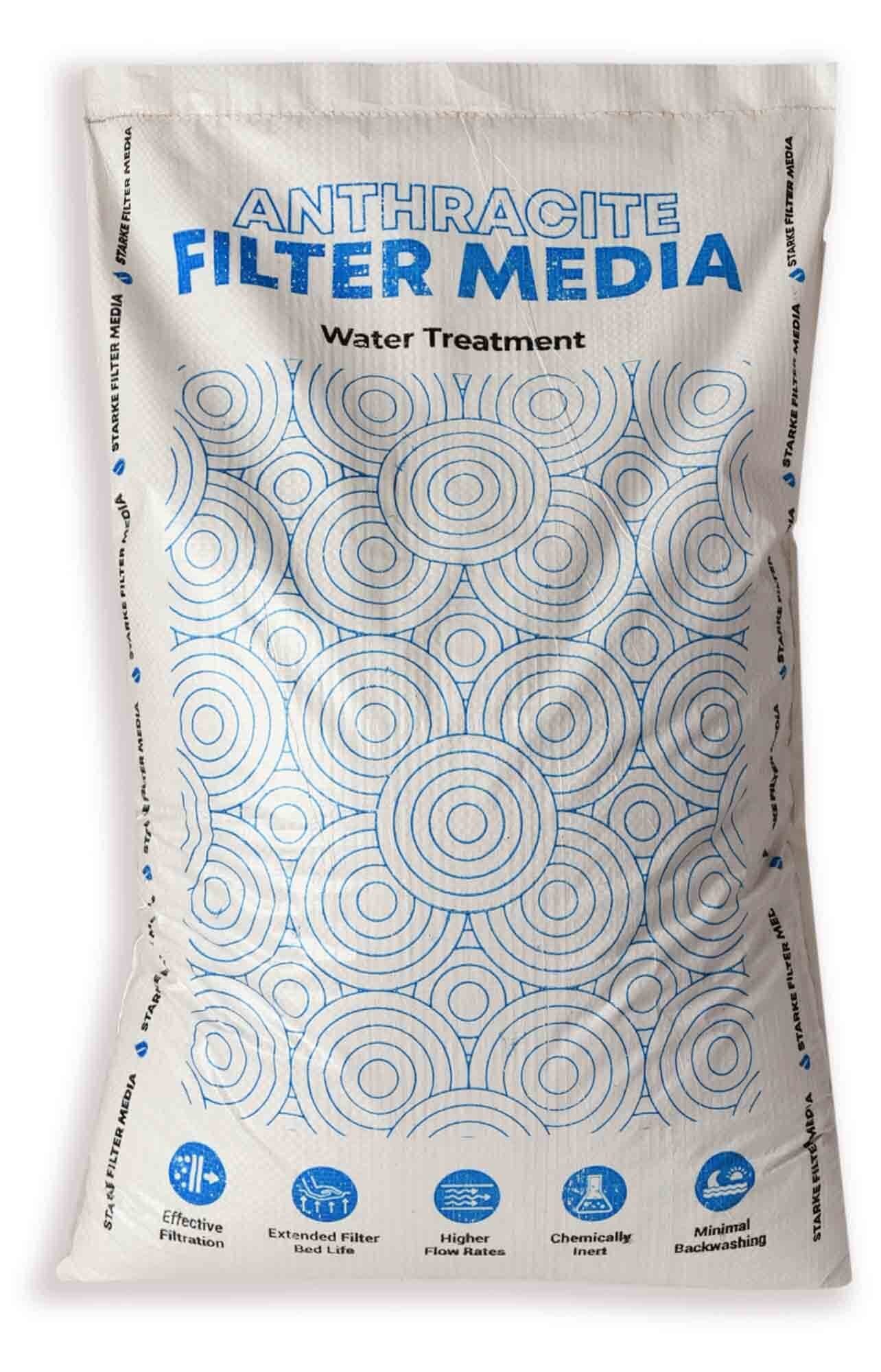

| Packaging | 25 kg Bag |
Note: Technical values are typical and should be confirmed for the specific particle-size grade and production batch. Final filter performance depends on media grading, bed depth, service flow, influent water quality and backwash conditions.
Size Selection
| Particle Size | Typical Positioning | Online Selection |
| 0.8–1.6 mm | Fine anthracite filtration grade | Selectable variant |
| 1–2 mm | General multimedia filtration grade | Selectable variant |
| 1.4–2.9 mm | Coarser anthracite filtration grade | Selectable variant |
NEED HELP SELECTING A SIZE?
Download Datasheet
Anthracite Filter Media – Technical Datasheet (PDF)
DOWNLOAD DATASHEET
Bulk Orders
Need Anthracite for a Multimedia Filter or Project?
For OEMs, water-treatment companies, EPC contractors, dealers and replacement-media projects, Starke can provide project-specific quantities and quotations.
- Multiple 25 kg bags
- Palletised supply
- Jumbo-bag packing where applicable
- Filter-vessel loading quantities
- Dual-media / multimedia filter replacement quantities
- Project and export quantities
REQUEST BULK QUOTE
