Support Gravel / Filter Pebbles

Name: Support Gravel / Filter Pebbles
Brand: Starke Filter Media
SKU: SG-[SIZE]
Price: 499.00 INR
Availability: InStock

₹499.00

Graded Quartz / Silica Support Media for Water Filtration Systems
25 kg Bag
Inclusive of GST
For complete filter-bed loading, multiple gravel layers, vessel quantities, pallet orders or custom sizes, request a bulk quotation.

Select Particle Size

Clear

REQUEST BULK QUOTE

SKU: SG-[SIZE] Categories: Filter Media, Support Media Brand: Starke Filter Media

Description

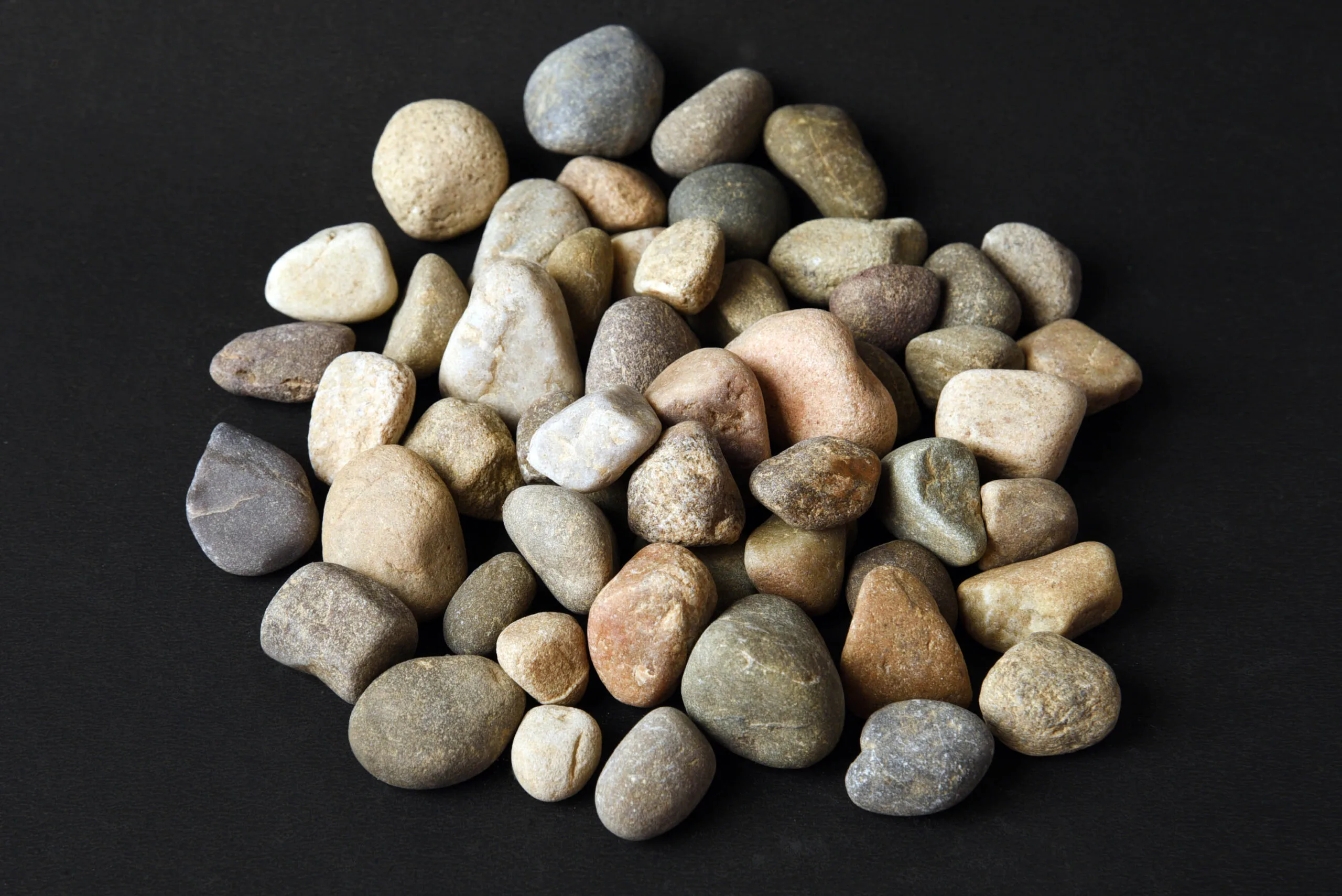

Support Gravel, also referred to as filter pebbles or underbed gravel, is a hard and durable graded mineral media used beneath filtration media in water-treatment filters. It forms a stable support bed, helps retain the upper filtration media and assists in distributing water through the filter underdrain system.

Different gravel sizes are commonly arranged in graded layers according to the filter design. The correct size sequence and bed depth depend on the underdrain arrangement, vessel configuration and the filtration media being supported.

Key Benefits

Provides a stable support layer beneath filter media
Helps prevent finer filtration media from entering the underdrain system
Supports more uniform water distribution through the filter bed
Available in multiple accurately graded particle-size ranges
Suitable for single-media, dual-media and multimedia filters
Hard, durable mineral media for repeated service and backwash cycles
Suitable for new filter installations and replacement-media projects
Bulk and vessel-loading quantities available

Additional information

Select Particle Size	10–15 mm, 12–20 mm, 25–40 mm, 3–6 mm, 30–40 mm, 5–10 mm, Other project sizes on request

Specifications

Parameter	Typical Specification
Product	Support Gravel / Filter Pebbles
Material	Quartz / Silica mineral gravel
Appearance	Natural light-coloured gravel / pebbles
Particle Shape	Rounded to sub-rounded / grade dependent
Available Sizes	2–4, 3–6, 5–8, 5–10, 10–15, 12–20, 25–40, 30–40 mm
Typical Bulk Density	Approx. 1,500–1,600 kg/m³
Primary Function	Filter underbed / media support
Applicable Water-Filtration Standard	EN 12904 / AWWA B100 / IS 8419 where the offered grade is supplied to the applicable requirement
Packaging	25 kg / 50 kg bags or project packing, as offered

Available Sizes

Particle Size	Typical Positioning	Online Treatment
2–4 mm	Fine support gravel	Selectable variant
3–6 mm	Fine / intermediate support layer	Selectable variant
5–8 mm	Intermediate support layer	Selectable variant
5–10 mm	Intermediate support layer	Selectable variant
10–15 mm	Coarse support layer	Selectable variant
12–20 mm	Coarse support layer	Selectable variant
25–40 mm	Very coarse support / underbed layer	Selectable variant where stocked
30–40 mm	Very coarse support / underbed layer	Selectable variant where stocked

NEED HELP SELECTING A SIZE?

Applications

Pressure sand filters
Rapid gravity filters
Multimedia filters
Dual-media filters
Activated carbon filters
Iron and manganese removal filters
Water-treatment plants
RO pretreatment systems
Industrial and municipal filtration
Replacement of existing filter underbed gravel

Filter Layering

Illustrative Layer Position	Example Media	Purpose
Top support layer	Fine gravel such as 2–4 mm / 3–6 mm	Supports finer filtration media
Intermediate layer	Medium gravel such as 5–8 mm / 5–10 mm	Transitions between fine and coarse layers
Lower support layer	Coarser gravel such as 10–15 mm / 12–20 mm	Supports bed and assists distribution
Bottom / underdrain layer	Coarse gravel such as 25–40 mm / 30–40 mm where required	Protects and interfaces with underdrain system

Important: The above is illustrative only. Actual size sequence and bed depth must follow the filter manufacturer’s / project designer’s specification.

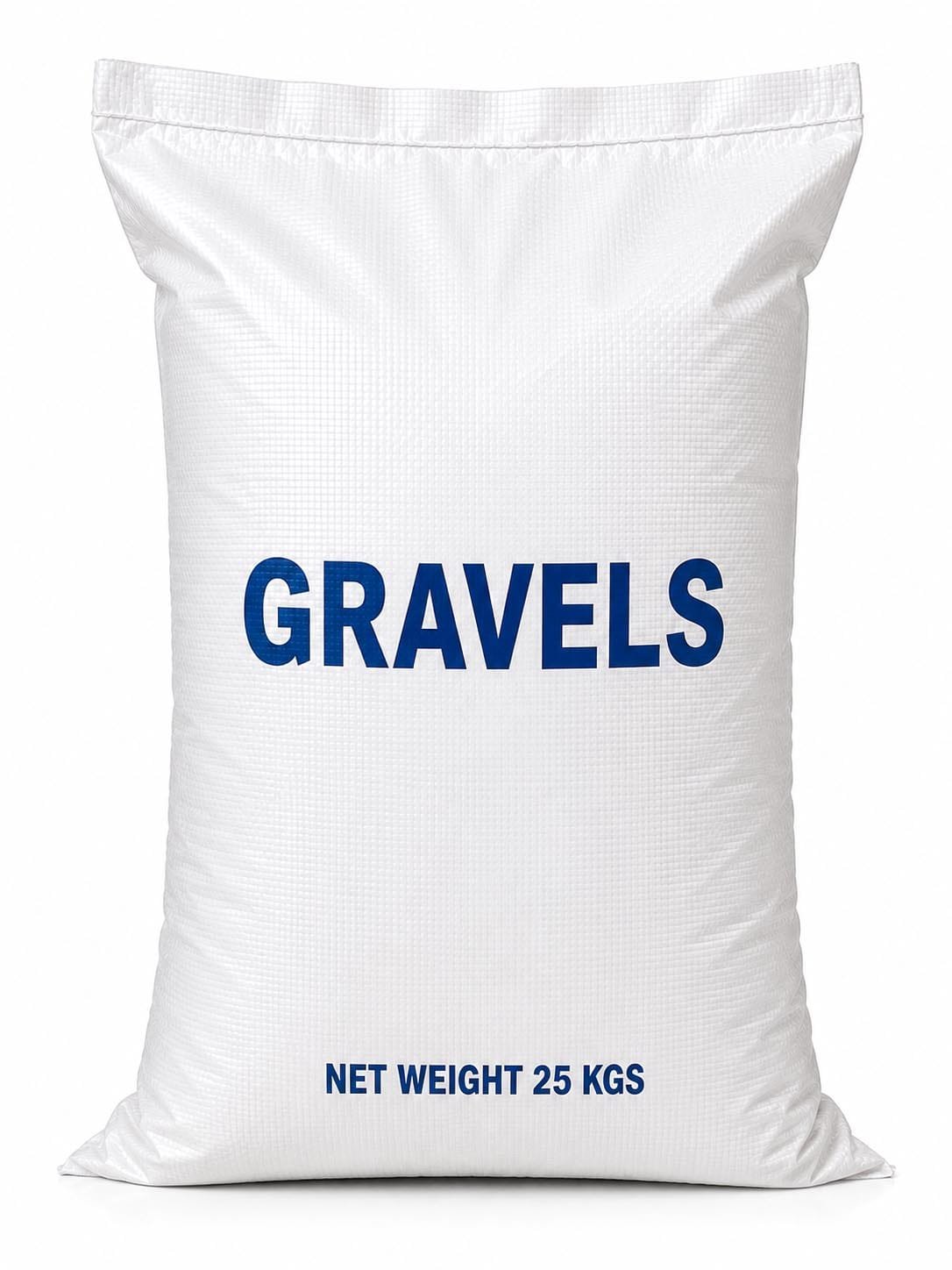

Packaging

25 kg bags – where offered
50 kg bags – where offered
Palletised supply
Jumbo bags / project packing where applicable
Multiple grades can be supplied together for complete filter-bed loading

Bulk Orders

Need Complete Support Gravel Loading for a Filter Vessel?

For OEMs, EPC contractors, water-treatment companies, dealers and replacement-media projects, Starke can calculate/supply project quantities according to the specified gravel layers.
