When it comes to multi-media filtration, the effectiveness of a filter depends not just on the design but on the quality and density of the filter media used. Among the various materials available such as sand, anthracite, zeolite, and glass Garnet Filter Media stands out as the high-density powerhouse that enhances filtration depth, performance, and water quality.
At Starke Aquacare Technologies, we supply industrial-grade garnet filtration media engineered to meet AWWA B100 / EN / ISO standards ensuring consistency, durability, and efficiency in every filtration application.
What Is Garnet Filter Media?

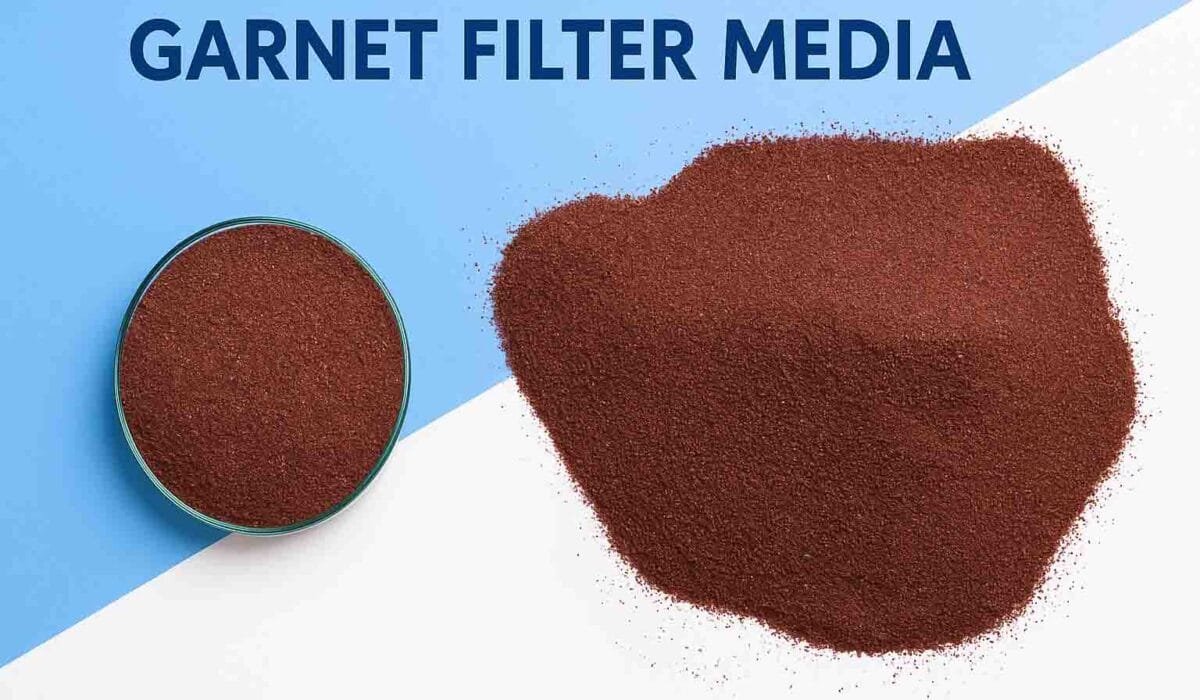

Garnet Filter Media is a naturally occurring almandine mineral with a high specific gravity (4.0–4.2), exceptional hardness (7–8 on the Mohs scale), and angular grain structure. These properties make it one of the most durable and efficient filtration materials used in water and wastewater treatment systems worldwide.
Key Composition:
Chemical Formula: Fe₃Al₂(SiO₄)₃
Hardness: 7–8 Mohs
Specific Gravity: 4.0–4.2 g/cm³
Bulk Density: ~2.3–2.5 g/cm³
Effective Size (ES): 0.2–1.2 mm (available in multiple grades)
Uniformity Coefficient (UC): ≤ 1.7
Because of its high density, garnet naturally settles as the bottom layer in a dual-media or multi-media filter bed, providing a strong foundation for effective filtration of fine suspended solids.
How Does Garnet Filter Media Work?
In a multi-media filter bed, different materials typically anthracite, sand, and garnet are layered according to their density. Garnet, being the densest, sits at the bottom, capturing the finest particles that pass through the upper layers.
The Typical Multi-Layer Arrangement:
Anthracite (Top Layer): Traps larger particles
Silica Sand (Middle Layer): Filters medium-sized particles
Garnet Filter Media (Bottom Layer): Captures fine particles down to 10–20 microns
This configuration provides depth filtration, preventing clogging and extending the run time between backwash cycles.
In industrial and municipal systems, garnet’s high specific gravity and angular grains improve solids retention, ensuring cleaner effluent and lower turbidity.
Technical Properties of Garnet Filter Media
| Property | Typical Value |
|---|---|
| Appearance | Reddish brown angular grains |
| Effective Size | 0.2 – 1.2 mm |
| Uniformity Coefficient | ≤ 1.7 |
| Bulk Density | 2300 – 2500 kg/m³ |
| Specific Gravity | 4.0 – 4.2 |
| Hardness | 7–8 Mohs |
| Chemical Composition | Al₂O₃ 20–22%, Fe₂O₃ 28–32%, SiO₂ 36–40%, MgO, CaO traces |
| Solubility in Acid | < 1% |
| Loss on Ignition | < 1% |
| Turbidity Removal | Up to 10–20 µm particle size |
| Operating pH Range | 3–10 |
These physical and chemical properties make garnet filter media an ideal choice for dual-media and multi-media filters, offering long service life, high filtration efficiency, and chemical resistance.
Advantages of Using Garnet Filter Media
✅ 1. High-Density Filtration Layer
With a specific gravity of 4.0–4.2, garnet filter media remains stable even under high backwash flow rates, maintaining its position as the lower layer in multi-media filter beds.
✅ 2. Exceptional Hardness and Durability
Garnet’s hardness (7–8 Mohs) prevents attrition and breakdown, ensuring a long service life and minimal loss during backwash.
✅ 3. Superior Filtration Performance
Garnet efficiently filters out fine particles in the range of 10–20 microns, enhancing turbidity removal and achieving low TSS (Total Suspended Solids) levels in treated water.
✅ 4. Chemical and Corrosion Resistance
Highly resistant to acids, alkalis, and chlorine-based chemicals, making it ideal for industrial water treatment, RO pre-filtration, and wastewater recycling.
✅ 5. Consistent Grading and Uniformity
Low Uniformity Coefficient (≤1.7) ensures uniform flow distribution, reducing channeling and improving filter run times.
✅ 6. Long Service Life
With proper maintenance, garnet media can last 8–10 years, offering low lifecycle costs compared to cheaper alternatives.
✅ 7. Compatible with All Filtration Systems
Suitable for use in gravity filters, pressure filters, and multi-media filtration units for both industrial and municipal applications.
Applications of Garnet Filter Media
Because of its unique combination of density, hardness, and angularity, garnet filtration media is widely used in a range of water and wastewater treatment applications:
1. Industrial Water Treatment
Used in pre-filtration and post-treatment systems for power plants, refineries, and manufacturing industries.
2. Municipal Water Filtration
Ensures consistent removal of turbidity and suspended solids in city and community water treatment plants.
3. Wastewater Treatment Plants (WWTP)
Removes fine particulates and colloids during tertiary treatment stages.
4. Swimming Pool Filtration
Enhances clarity when combined with sand and anthracite; ideal for high-capacity commercial pools and resorts.
5. Reverse Osmosis (RO) Pre-filtration
Protects membranes from clogging by efficiently removing fine suspended solids.
6. Multi-media and Dual-media Filters
Forms the bottom layer under sand and anthracite for depth filtration, reducing backwash frequency and improving throughput.
7. Cooling Tower and Process Water Filtration
Removes particulate matter from recirculating water, maintaining system efficiency.
Why Garnet Outperforms Conventional Filter Media
| Parameter | Sand Filter Media | Zeolite Filter Media | Garnet Filter Media |
|---|---|---|---|
| Density (g/cm³) | 1.5 | 1.3–1.5 | 4.0–4.2 |
| Filtration Micron | 20–30 µm | 5–10 µm | 10–20 µm (Fine Layer) |
| Chemical Resistance | Moderate | Excellent | Excellent |
| Durability | 3–5 years | 5–7 years | 8–10 years |
| Backwash Stability | Average | Good | Excellent |
| Position in Filter Bed | Middle layer | Upper layer | Bottom layer |
| Uniformity Coefficient | 1.6–1.8 | 1.3–1.4 | ≤1.7 |
This comparison highlights why garnet filter media is the preferred choice for bottom layering — its density ensures stratification, while its hardness and angular grains provide maximum solids capture and long-term stability.
Standard Garnet Filter Media Sizes
Garnet filter media is available in multiple effective size (ES) grades, depending on the application and filter configuration:
| Mesh Size (ASTM) | Effective Size (mm) | Common Use |
|---|---|---|
| 12–20 Mesh | 1.0 – 1.7 mm | Support bed / bottom layer |
| 20–40 Mesh | 0.4 – 0.85 mm | Fine filtration layer |
| 30–60 Mesh | 0.25 – 0.6 mm | Ultra-fine polishing filtration |
| 50–80 Mesh | 0.18 – 0.3 mm | Specialized polishing filters |
All grades are produced, washed, and sieved according to AWWA B100 and EN 12904 standards for uniformity and performance consistency.
Quality Standards and Compliance
At Starke Aquacare Technologies, every batch of garnet filtration media undergoes strict inspection and testing to ensure compliance with global standards:
✅ AWWA B100:2022 (American Water Works Association)
✅ EN 12904:2018 (European Drinking Water Standard)
✅ ISO 9001 Certified Manufacturing
✅ Low turbidity and high sphericity verification
✅ Uniformity Coefficient (UC ≤ 1.7) for consistent performance
Each shipment is accompanied by a Certificate of Analysis (COA), Sieve Analysis Report, and Inspection & Test Plan (ITP).
Global Demand for Garnet Filtration Media
Due to its superior performance and durability, garnet filter media is increasingly used in desalination plants, industrial ETPs, and municipal WTPs across the Middle East, Africa, Europe, and Asia-Pacific regions.
Its combination of high density, long life, and chemical resistance makes it a cost-effective choice over time, despite a higher initial investment compared to sand or silica.
With growing global emphasis on sustainable water management, garnet’s ability to reduce backwash frequency and enhance water recovery aligns perfectly with modern treatment goals.
Ideal Applications for Garnet Media from Starke
Dual Media Filters
Multi Media Filters
Gravity Sand Filters
Pressure Filters
Desalination Pre-Filters
Industrial ETPs/STPs
Cooling Tower Filters
Power & Process Water Systems
Conclusion
Garnet Filter Media is more than just another granular material it’s the core of advanced multi-media filtration systems.
Its superior density, hardness, and filtration precision make it indispensable in achieving high-quality treated water for industrial, municipal, and commercial applications.
At Starke Aquacare Technologies, we provide high-purity garnet filtration media tailored for diverse water treatment needs. Each batch is tested, certified, and shipped globally with complete documentation.
Order Certified Garnet Filter Media from Starke
You can purchase garnet filter media in different grades and effective sizes suitable for multi-media filters, gravity filters, and pressure systems.
