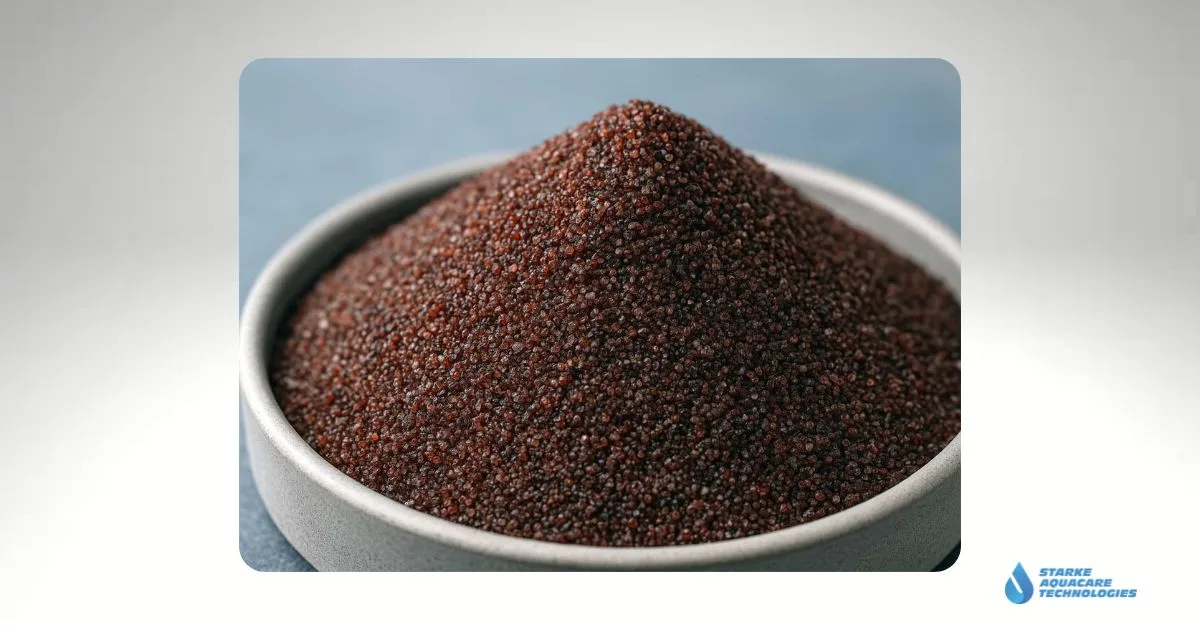

What Is Garnet Sand Filter Media?
Garnet sand is a naturally occurring, high-density mineral from the silicate family. It features an angular structure and a specific gravity of around 4.0 g/cm³, making it ideal for use in multimedia water filtration systems.
This robust filter media is commonly used as the bottom layer in multi-layered filtration beds to capture fine particles as small as 5 microns. Compared to conventional sand, garnet delivers deeper filtration, superior clarity, and longer filter life.
Why Is Garnet Ideal for Water Filtration?
Garnet is primarily used in the bottom layer of multimedia filters because of its high density and sharp grain structure. These properties help in:
Trapping the finest suspended particles
Supporting upper layers of coarser media
Enhancing total suspended solids (TSS) removal
Reducing frequency of backwashing
Extending media service life
Where Is Garnet Used?
Garnet sand is widely used in:
Industrial process water filtration
Municipal water treatment
Pre-filtration in RO plants
Cooling tower circulation systems
Effluent and sewage treatment plants (ETPs/STPs)
Its versatility makes it suitable for both drinking water and wastewater applications.
How Is Garnet Used in Multimedia Filter Beds?
Here’s a typical three-layer multimedia filter configuration using garnet:
| Layer | Media | Function |
|---|---|---|
| Top Layer | Anthracite | Captures large suspended solids |
| Middle Layer | Silica Sand | Filters out medium-sized particles |
| Bottom Layer | Fine Garnet (0.3–0.6 mm) | Retains fine particles (5–10 µm) |
This combination enables efficient depth filtration from top to bottom.
Garnet Filter Media Installation Guidelines
Garnet Bed Depth: 100–150 mm
Layer Proportion: Garnet should make up 10–20% of the total filter bed
Pre-Rinsing: Mandatory to remove fine dust particles before use
Technical Specifications of Garnet Sand
| Parameter | Value |
|---|---|
| Effective Size | 0.3–0.6 mm (fine), 1.2–2.4 mm (coarse) |
| Uniformity Coefficient (UC) | ≤ 1.5 |
| Bulk Density | 2,300–2,500 kg/m³ |
| Service Flow Rate | 10–25 m³/hr/m² |
| Backwash Flow Rate | 30–45 m³/hr/m² |
| Bed Expansion (25–30°C) | 30–40% during backwash |
Garnet vs Silica Sand Filter Media
| Feature | Garnet Media | Silica Sand |
|---|---|---|
| Density | 4.0 g/cm³ | 2.6 g/cm³ |
| Particle Retention | 5–10 µm | 15–20 µm |
| Filtration Depth | Deeper Bed Penetration | Shallow Retention |
| Layering Performance | Excellent as Base Media | Limited Support Role |
| Turbidity Removal | High | Moderate |
Conclusion: Garnet offers better clarity, durability, and media life compared to traditional filter sand.
Why Isn’t Garnet More Common Than Sand?
Although garnet outperforms sand, it is still not widely used due to:
Higher Initial Costs: More weight means higher transport cost
Lack of Awareness: Many installers use sand by default
Targeted Usage: Preferred for high-end or industrial filtration systems
However, in systems requiring long-term reliability and reduced maintenance, garnet proves to be a cost-effective investment.
Why Choose Garnet from Starke Filter Media?
✔️ Batch-wise Quality Testing (Effective size, UC, hardness)
✔️ Export-Ready Packaging (25 kg bags and jumbo bags)
✔️ Available in Fine & Coarse Grades
✔️ Custom Loading Advice for Multimedia Filters
✔️ In-Stock in India for Immediate Dispatch
Frequently Asked Questions (FAQs)
What size of garnet is best for multimedia filters?
For deep-bed filters, 0.3–0.6 mm (fine garnet) is the ideal size for the bottom layer.
Is garnet reusable?
Yes. Garnet has a Mohs hardness of 7.5–8, making it extremely durable. With proper backwashing, it can last 5–10 years.
Does garnet affect water chemistry?
No. Garnet is 100% chemically inert and safe for all types of filtration.
Why is garnet used as the bottom layer?
Its high specific gravity ensures it remains at the bottom, allowing other media layers to perform optimally without migration.
Is Garnet Sand Right for Your Filtration System?
If you want high-efficiency filtration, low turbidity, and extended media life, garnet sand is the perfect solution. It is highly recommended for:
Industrial filtration units
Municipal water treatment plants
RO plant pre-filtration setups
Effluent and sewage systems requiring fine filtration
